Using Bacteria to Protect Roads From Potholes Caused by Road Salt

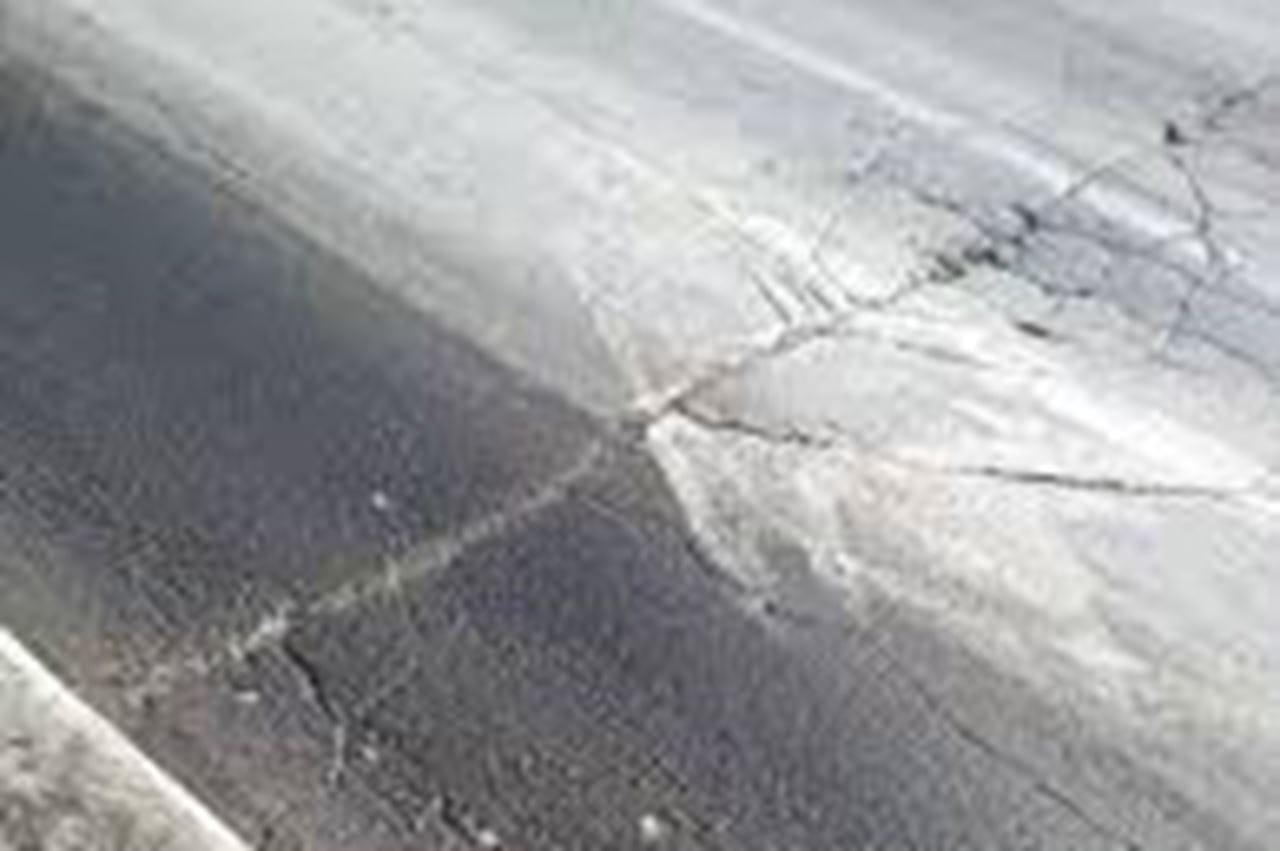

concrete road

Researchers have discovered that a special type of bacteria, that is responsible for the formation of minerals like limestone and marble, can also be used to prevent the formation of a compound that causes potholes to form on roadways where road salt is used as a deicer.

Tiny bacteria could soon be chipping in to keep roads from chipping away in the winter, according to Drexel University researchers who are looking into new ways to make our infrastructure more resilient.

Chemicals, like calcium chloride – commonly called “road salts” — are used to prevent the ice formation and snow accumulation that can lead to dangerous travel conditions. But they are also known culprits behind potholes and road surface deterioration. This degradation is caused by the chemicals reacting with the concrete and the water in ice and snow to form an expansive compound that can break down concrete by generating internal expansions and distresses. The deleterious compound, called CAOXY — short for calcium oxychloride — can also wedge out chunks of concrete as it infiltrates the road surface before freezing and thawing.

damaged concrete

In their research, recently published in the journal Construction and Building Materials, Yaghoob Farnam, PhD, Christopher Sales, PhD, and Caroline Schauer, PhD, researchers in Drexel’s College of Engineering, show how mixing a bit of bacteria into concrete can curtail the formation of CAOXY.

The researchers arrived at their theory while studying a strain of bacteria called Sporosarcina pasteurii. S. pasteurii is rather unusual because it is able to induce the chemical reaction that creates calcium carbonate, a substance often referred to as “nature’s cement.” Only a few types of bacteria are able to pull of this trick, called microbial induced calcium carbonate precipitation, or “biomineralization,” but you can see their work in the mineral depositions that form limestone and marble.

conglomerate rocks

Over the last decade bacteria like S. pasteurii have been studied as a way to repair cracks in statues and concrete infrastructure, and, more recently, as an environmentally sustainable option for making bricks. But the Drexel researchers realized that one of the bacteria’s other talents might also be quite useful for preventing those cracks for forming in the first place.

 “We were actually looking at the end product of a chemical reaction involving these bacteria – calcite – but we came to realize that the way they produce it could be quite useful when it comes to diverting the reaction that turns road salt into a road-deteriorating compound,” Farnam said. “We knew the bacteria require calcium chloride to produce the calcite, which is a harmless compound. So if we could work out a way to have the bacteria present when the calcium chloride road salt hits the concrete it could interact with the bacteria and curtail the reaction that causes road degradation.”

To test their theory, Sales and Farnam made a series of concrete samples using the type of cement commonly used in roads and added a mixture of S. pasteurii and the nutrients they need to survive to some of the samples. After 28 days of exposure to a solution of calcium chloride — simulating one month of road treatment in the winter — they performed a series of tests on the samples to determine their structural integrity and measure the amount of CAOXY present.

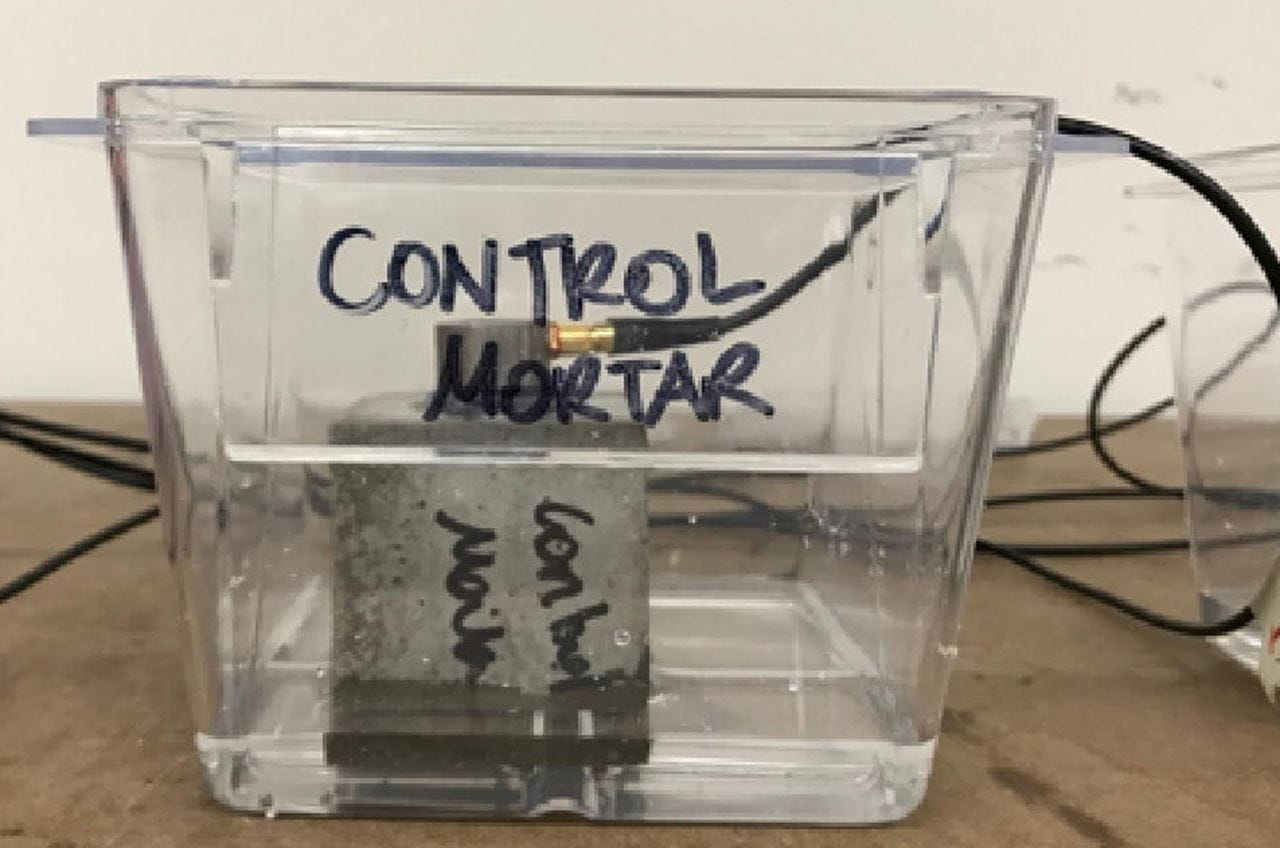

concrete testing

Looking at both the acoustic vibrations and the development of micropores in the mortar sample, which are both ways of quantifying the strength of the sample, the researchers found that the concrete made with the bacteria mixture experienced almost no deterioration after exposure to the calcium chloride.

In addition, the levels of CAOXY were much lower in the bacteria-laden samples, as a result of the microbial induced calcium carbonate precipitation. And the presence of calcium carbonate suggests that the bacteria’s interaction could also be used to strengthen the road surface, though this application would require more research, according to the team.

“The bacteria are capable of changing the micro-environment around them,” Sales said. “Specifically, they create a high pH environment by converting the chemicals in the nutrient slurry into a weak base, ammonia. This environment promotes the precipitation of calcium ions and carbonate ions into calcium carbonate— rather than the formation of CAOXY.”

Because the bacteria occur in nature and are non-pathogenic, they would be an environmentally safe solution to the problem of road deterioration. Sales and Farnam are hoping to push this work to the next level by collaborating with local and national departments of transportation for additional testing and development.

Read the full study here: https://www.sciencedirect.com/science/article/pii/S0950061818324334
